    MEDISYSTEMS SERIES 8020  PATIENT CALL SYSTEMS :


    Designed specially for assistance in queue management in the OPD of Hospitals or Clinics. It alerts waiting patients in the hospital’s busy OPD area to let each of them know the examination / consulting room number to which they are being called.

    • Ideal solution for queue management in crowded public hospitals.

    • Simple, effective and easy to operate with unfailing reliability.

    • The system consists of the three modules shown below:

    -----------------------------------------------------------------------------------------------------------------------------------------------------------------

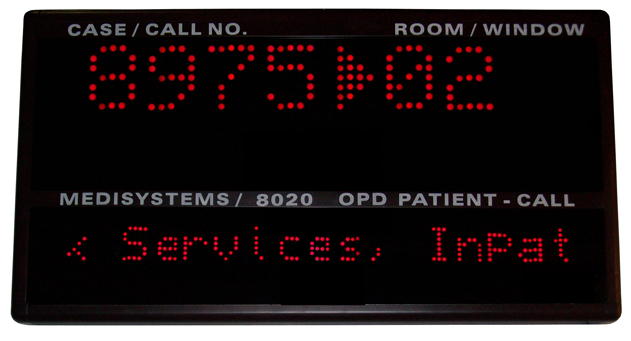

    MAIN DISPLAY UNIT :






    Main Display Unit is installed in the patient waiting area and is easily visible to all patients For more than one waiting area a Main Slave  Display Unit can be installed.

    The display unit is connected through cables to every examination/consulting room.

    The Display comprises :

    • High visibility electronic LED display.
    • Primary line for call numbers & room numbers with vertical scrolling.
    • Secondary message line display with horizontal scrolling.
    • Scrolling display of all numbers currently on call.
    • Dual speakers for audible chimes.
    • Periodic reminder chime.
    • Standby battery powered operation through UPS (optional).
    • Dimensions 915 mm L x 515 mm H x 65 mm D
    -----------------------------------------------------------------------------------------------------------------------------------------------------------------

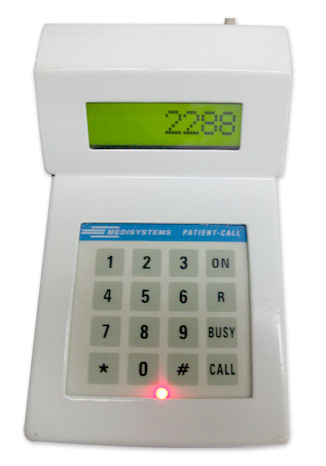

    DESK UNIT :


    Located on a wall or on Doctor’s desktop in each examination / consulting room.  Simple numeric keypad & display. Case or call number of the next patient to be keyed in by the Doctor. The number will be relayed to the main display. A receptionist or cashier may also be connected to the system with a desk unit.

    The desk unit consists of :

    • High visibility backlit LCD.
    • Membrane numeric keypad for high reliability
    • Epoxy-Polyester powder coated aluminium body.
    • Mating connectors or brass screw terminals for incoming wires.
    • Dimensions 150 mm L x 90 mm W x 50 mm H
    -----------------------------------------------------------------------------------------------------------------------------------------------------------------

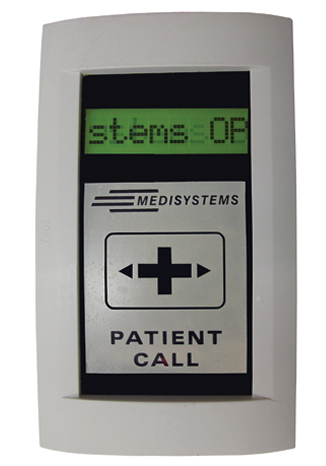

    DOOR DISPLAYS


    This display is mounted at the Doctor’s examination/consulting room entrance. Unit display’s the patient or case number. It helps guide patients to the correct room. It also gives occupancy status as ‘ENTER’ or ‘BUSY’.

    The door display unit consists of :

    • Surface mountable box on wall at room entrance.
    • High visibility backlit LCD.
    • Epoxy-polyester powder coated aluminium body.
    • Mating connectors or brass screw terminals for incoming wires.
    • Dimensions 150 mm L x 90 mm W x 50 mm H
    COMPACT TOKEN PRINTER


    The reception or admission desk can also have a thermal token printer.
    Features are :

    • Automatic token / ticket no. issuing
    • Easy and user-friendly operation
    • Upto 36 queues selection can be provided
    • Password no. for supervisor settings
    • Supervisor selected header and footer settings
    • Automatically resets next day token no. as option
    • Optional Dual token / ticket printing facility.
    • Dimension : 108 mm L x 178 mm W x 76 mm H
    • Thermal paper roll size : 2" inch in 15 mt. or 20 mt.
    • Token prints : 6 cm approx each (250 tokens approx in each 15 mt. Roll)
