Electronics Nurse-Call Systems 9040
Medisystems Electronic Nurse-Call Systems are modern microcontroller based digital systems. System features have been designed to cater for common hospital practices. Hence the basic audio-visual arrangement has been deliberately simplified through an easy to understand red-green lamp mode with easily recognisable audio chimes. No call can be cancelled or reset except by visiting the patient bedside. Even trainee nurses placed on ward duty at short notice can adapt to the system in minutes.
The systems is modular comprising a Central Display Console at the nurse-station counter, a Bed-Unit module behind each patient’s bed and a Handset which reaches out to the patient through a length of flexible cable. A Door Display Unit can also be mounted at the room entrance. An Emergency Alert Unit can be mounted within the toilet and/or also within the shower stall.
9040 Nurse-Call Systems are digitally pre-programmed, simple to use, configure and comfortably priced for modest budgets Nurse-Call system, yet has all the reliability, durability and aesthetics needed for essential connections between patient and nurse.
Central Nurse Station Displays

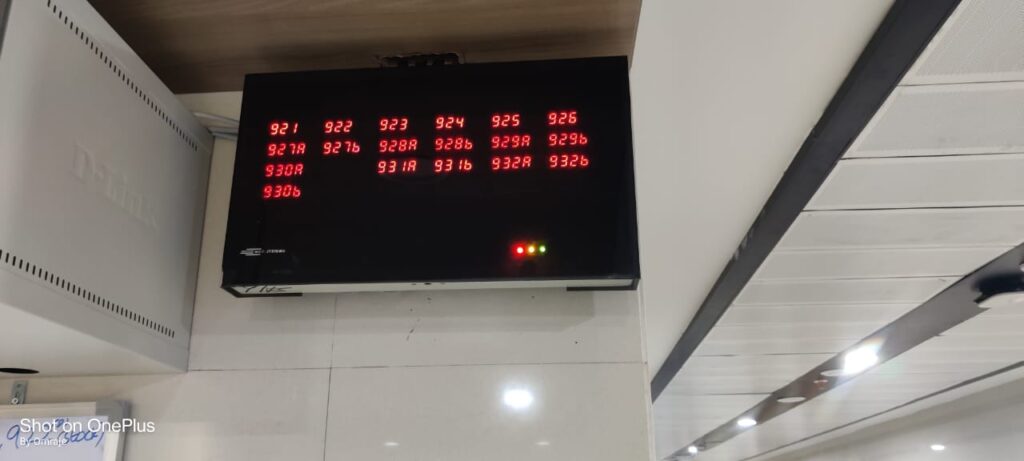

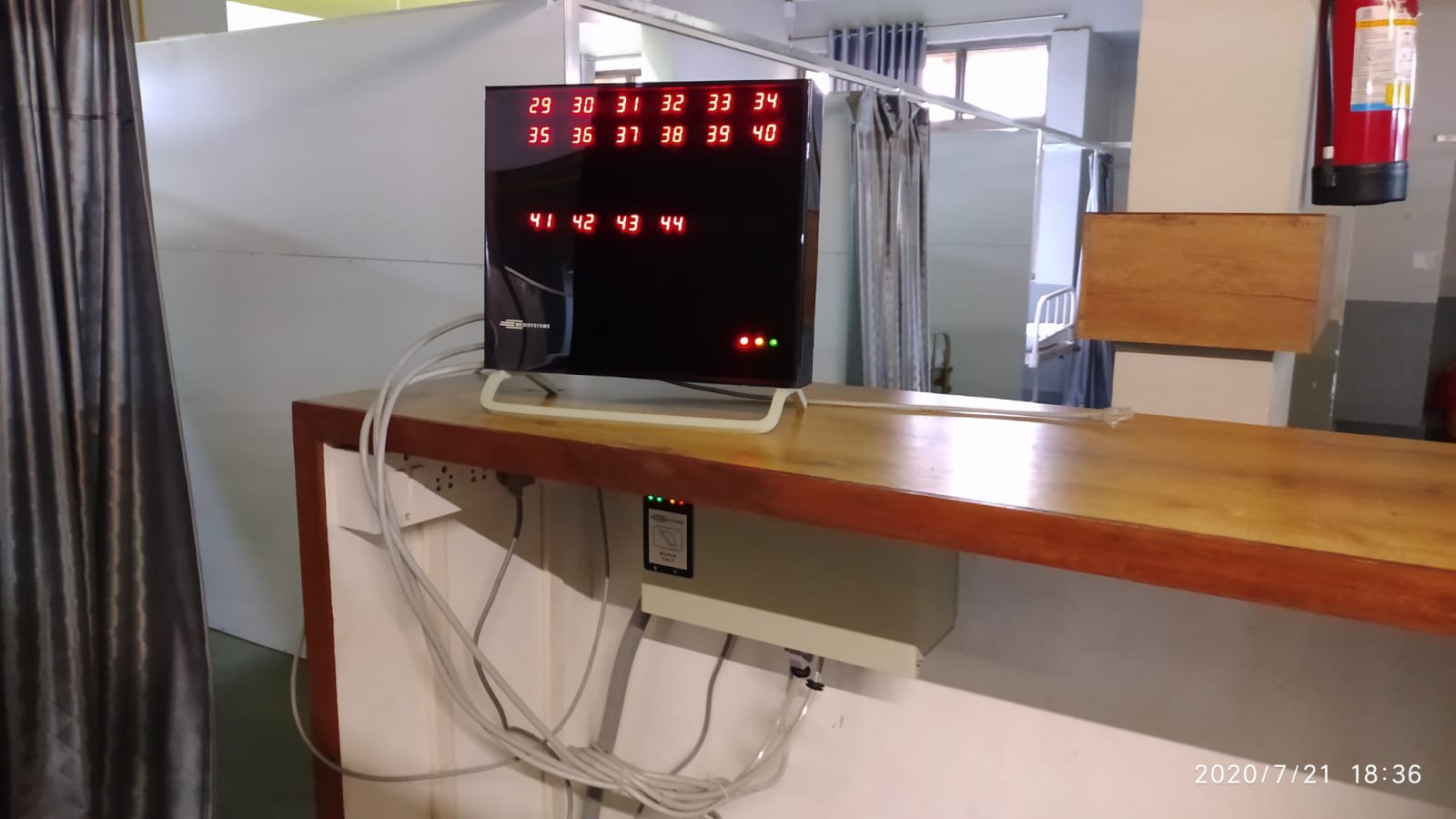

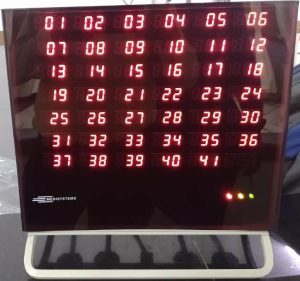

Central Nurse Station Displays are placed on the nurse-station desk top or mounted on the wall nearby. The console displays the calling bed numbers, the nature of the call – Normal or Emergency.
ADVANTAGES:
Large easy-to-read bed nos.& call type prefix for Call Status.
Call Type is displayed alongside bed no.
Dimensions: 32.5cm W X 28.5cm H X 5cm H, with base area of 32.5cm X 28.5cm.
BED UNITS

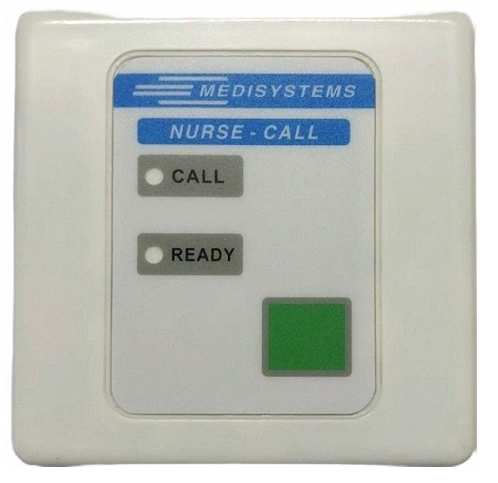

Bed Units mounted behind the patient’s bed indicate the call. They enable all calls to be attended and reset at the bedside.
ADVANTAGES:

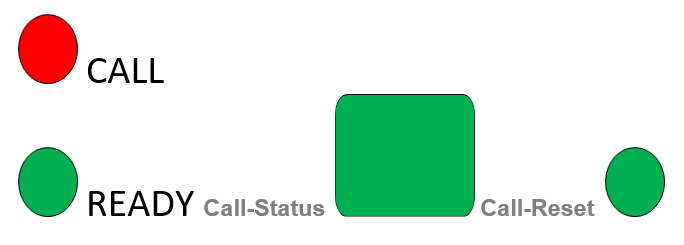

Lamp indicators for call status.
Concealed or Surface mountable
Outer Dimensions: 90 mm L X 90 mm W X 40 mm H [2M]
Cutout Dimensions: 50 mm L X 70 mm W X 44 mm H (CTC – 61 mm) [2M]
PATIENT HANDSETS

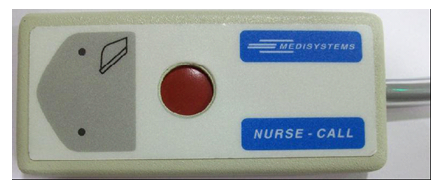

Handsets enable nurse calling with the simple press of a button. These easy to use handsets are safe, comfortable and rugged and come with a 2.0 m flexible cord.
Advantages:

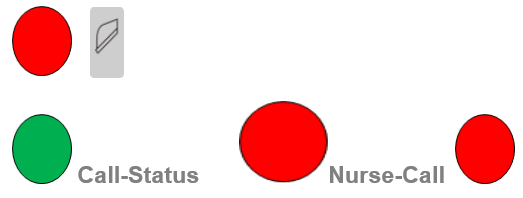

Rugged handsets with lamp indicators for calls.
Easy, safe and comfortable to use on the bed.
Dimensions: 175 mm L X 40 mm W X 20 mm H
SHOWER PULL CORD

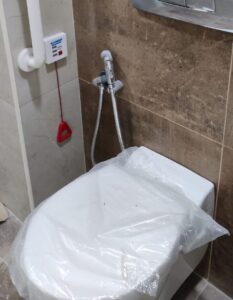

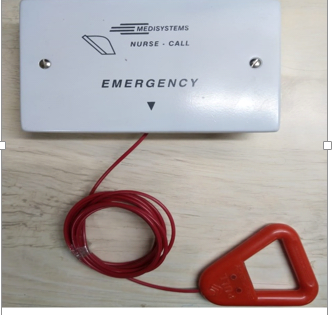

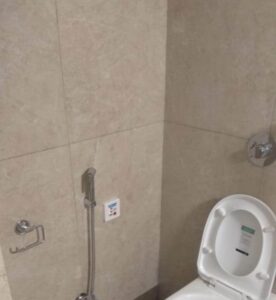

Emergency alert unit installed anywhere within the toilet or in shower area with a sturdy pull cord.
Advantages:
Emergency Pull cord switch provided for shower areas
Can be located anywhere within the toilet area for convenient operation
Indicator lamps for patient’s re-assurance.
Can support upto 100 kg.weight if needed
Prevents Fall Risk
Surface mountable on wall
Dimensions: 150 mm L X 90 mm W X 40 mm H
Emergency Call
Patient’s Load
Prevents Fall Risk
DOOR DISPLAYS
A Door Display unit is mounted at the Room entrance near the door frame. It has an indicator lamp which is visible throughout the corridor. Call status can be clearly recognised from a distance.Displays can also be ceiling mounted to indicate in cubicles.
Advantages:
Bright, elegant, two-colour door displays.
Concealed or Surface mountable.
Outer Dimensions: 90 mm L X 90 mm W X 40 mm H [2M]
Cutout Dimensions: 78 mm L X 76 mm W X 44 mm H (CTC – 61 mm) [2M]
HANDSET CRADLE

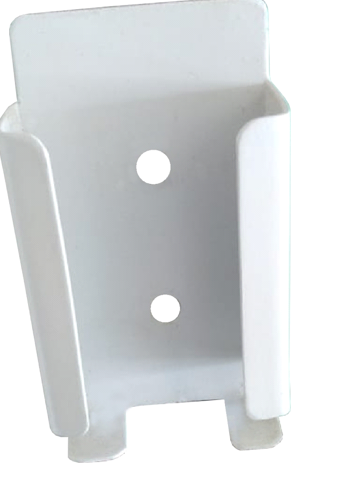

Handset cradles can mount handsets on the wall, rail or bed.
Advantages:
Designed from sturdy ABS plastic
Enables wall mounting and safe storage of all standard and multifunction handsets.
Prevents handsets getting pulled out or disconnected from bed.
Dimensions: 90 mm L X 46 mm W X 24 mm H
