Electronic Nurse - Call System 2010
Medisystems Electronic Nurse-Call Systems are modern microcontroller based digital systems. System features have been designed to cater for common hospital practices. Hence the basic audio-visual arrangement has been deliberately simplified through an easy to understand red-yellow-green lamp mode with easily recognisable audio chimes. All calls are acknowledgeable, to relieve patient stress, and no call can be cancelled or reset except by visiting the patient bedside. Even trainee nurses placed on ward duty at short notice can adapt to the system in minutes.

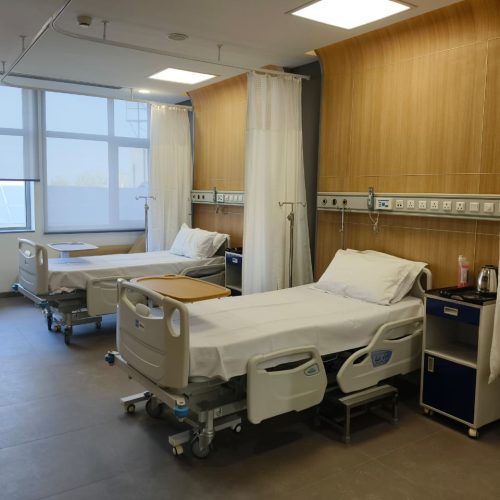

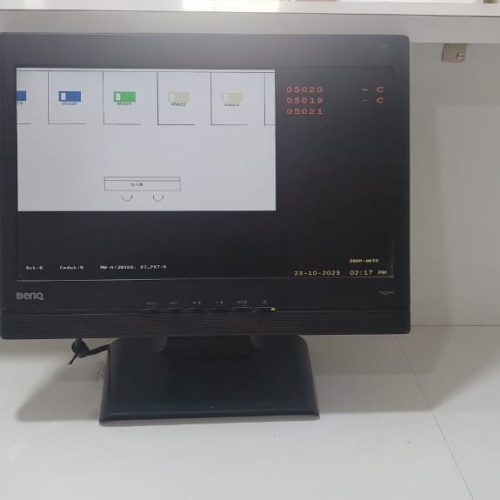

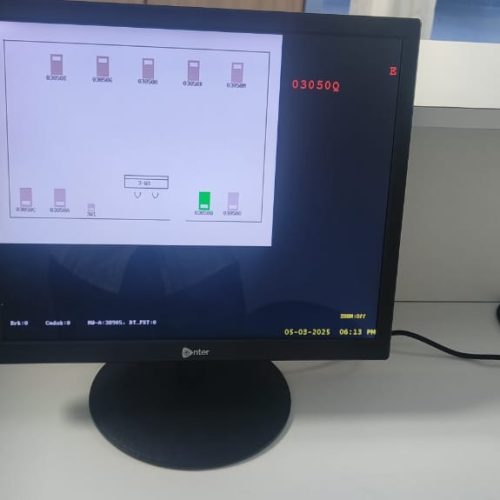

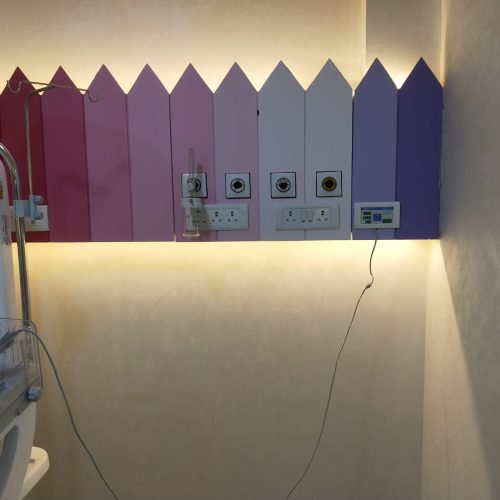

The systems is modular comprising a Central Display Console at the nurse-station counter (Optionally, also with Ward Graphic Displays), a Bed-Unit module behind each patient’s bed and a Handset which reaches out to the patient through a length of flexible cable. A Door Display Unit can also be mounted at the room entrance with Nurse- Presence registration. An Emergency Alert Unit can be mounted within the toilet and/or also within the shower stall.

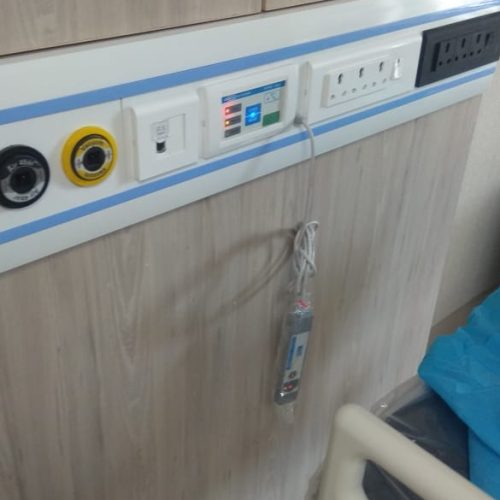

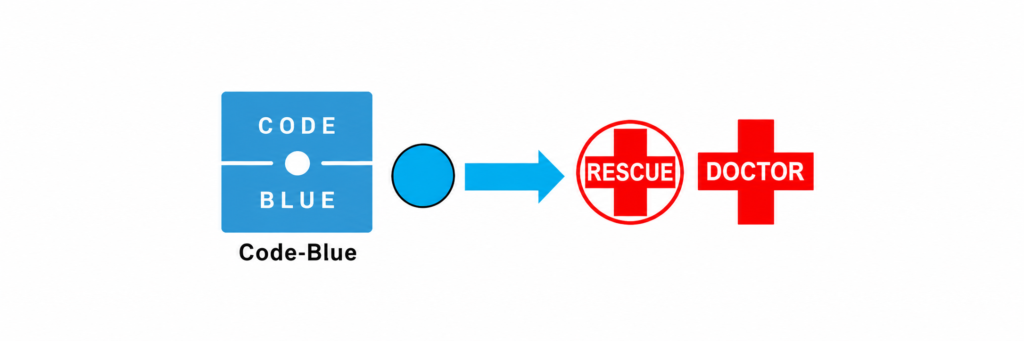

Optional features include Nurse-Help Request, Patient-Nurse Intercom, Code-Blue Alerts, IV-Drip Alert, Universal Medical Alarm Interface (UMAI), Additional Call Signals, Call Transfer Facility, Multifunction Handsets, Corridor Display Modules, Nurse-Call Response Monitoring and an SMS Alert facility for selected emergency calls to be forwarded directly to mobile devices.
204A
Displays Calling Bed Numbers
203A-H
Displays Call Type and Priority
Central Nurse Station Displays

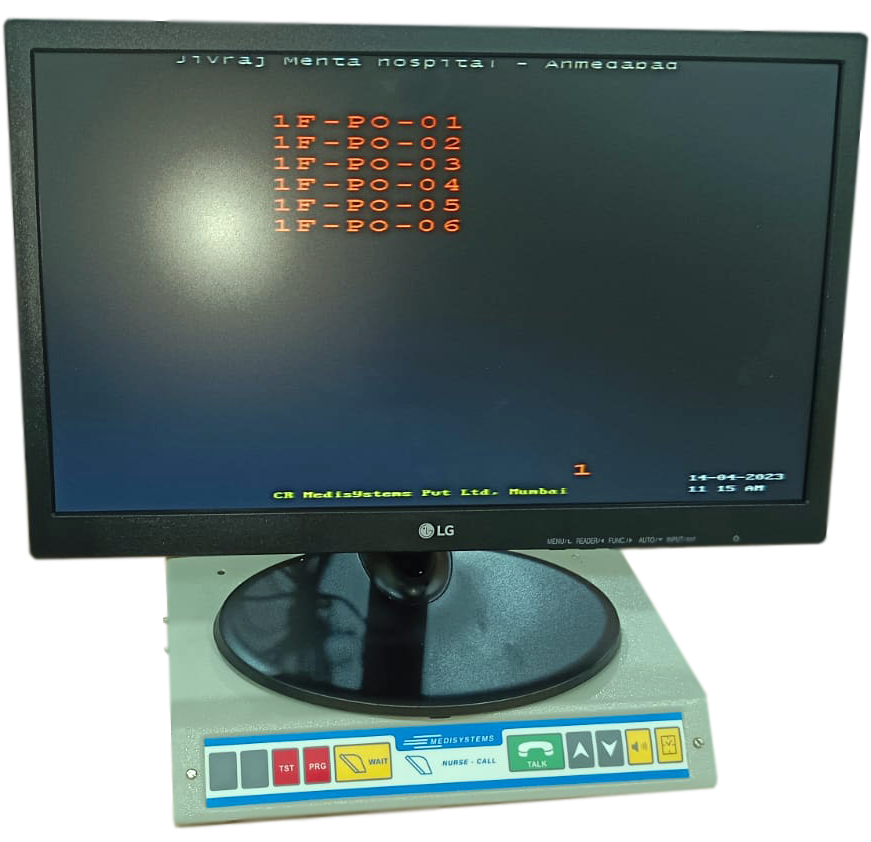

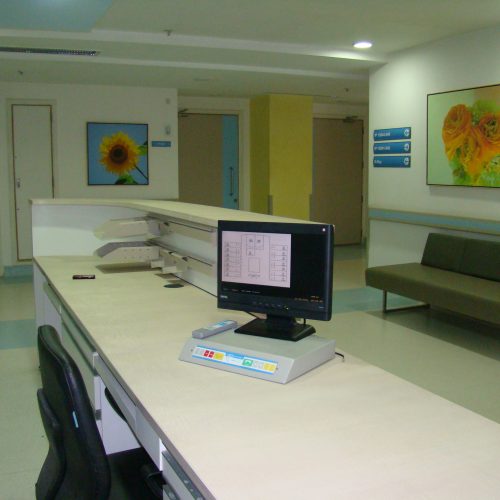

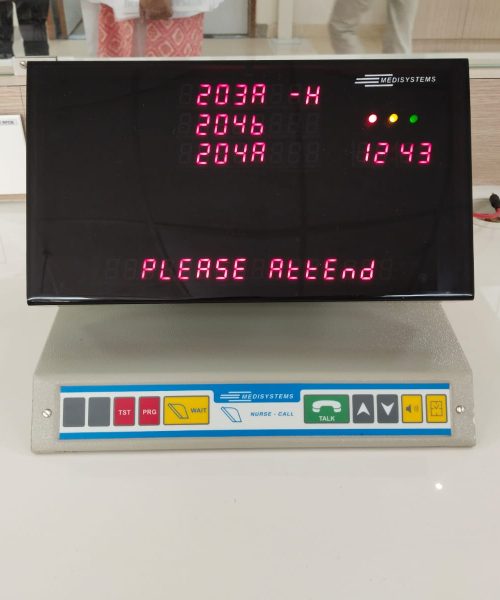

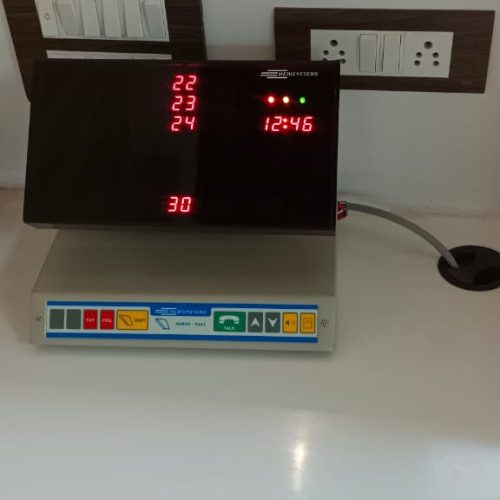

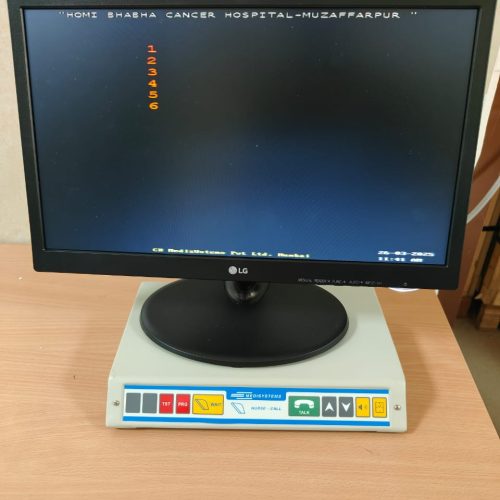

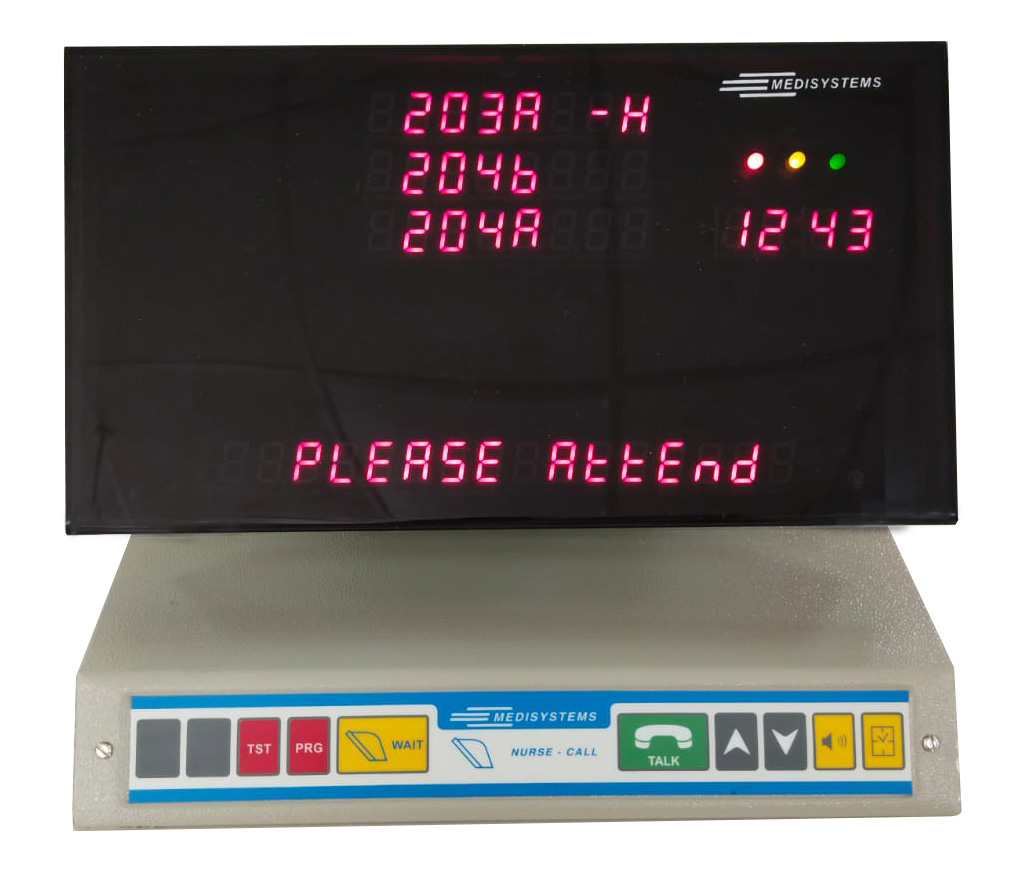

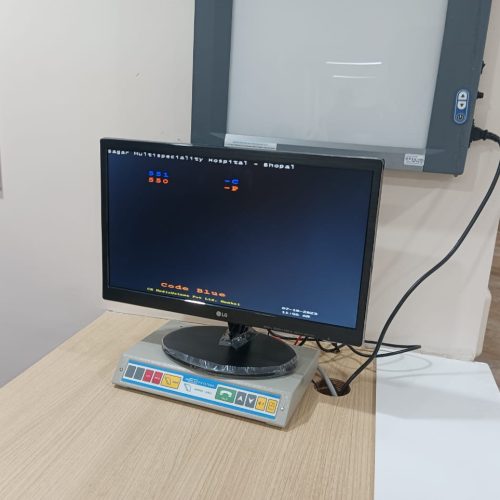

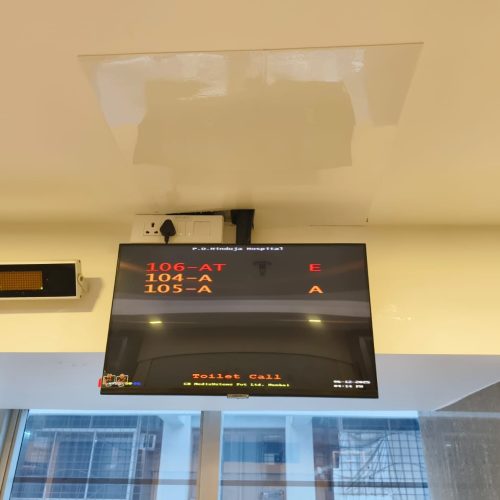

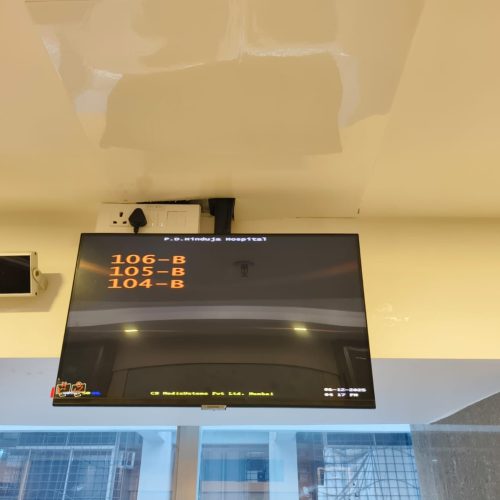

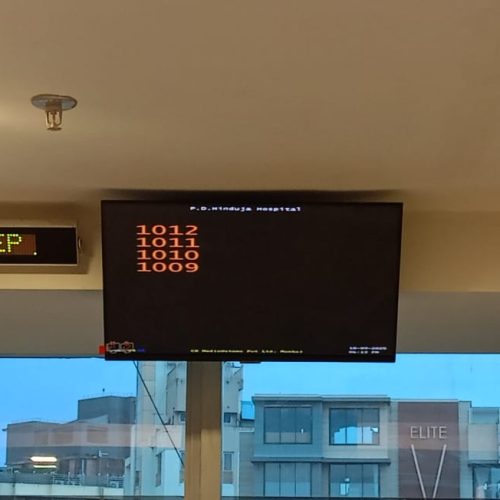

Central Nurse Station Displays are placed on the nurse-station desk top or mounted on the wall nearby. The console displays the calling bed numbers, the nature of the call – Normal, Emergency or Code-Blue, and the time of day.
Advantages:
- Large easy-to-read room and bed nos. & emergency messages.
- Single button call acknowledgement for all calling beds.
- Every Call Type displayed alongside bed no
- Call Priority Status is indicated
- Patient-Nurse Intercom.
- Call Transfer and Corridor Slave displays.
- Nurse-Call Response Monitoring with reports.
- Compatible with HIS
Dimensions: 305mm W X 200 mm D X 210mm H,with base area of 305mm W X 200mm D

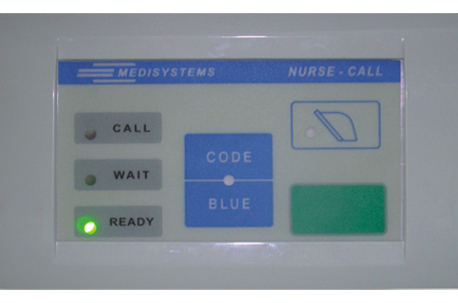

Bed Units

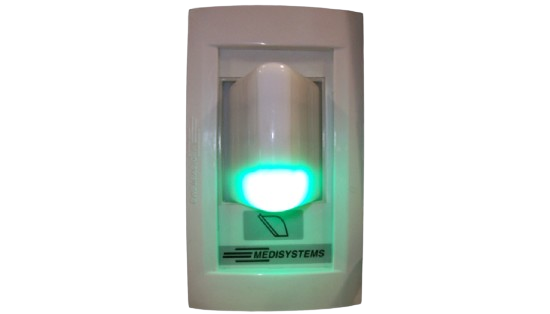

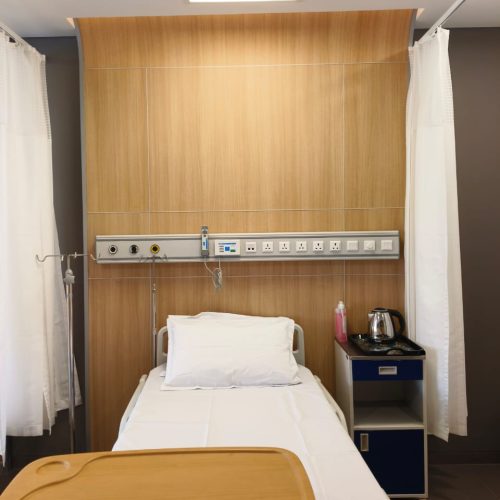

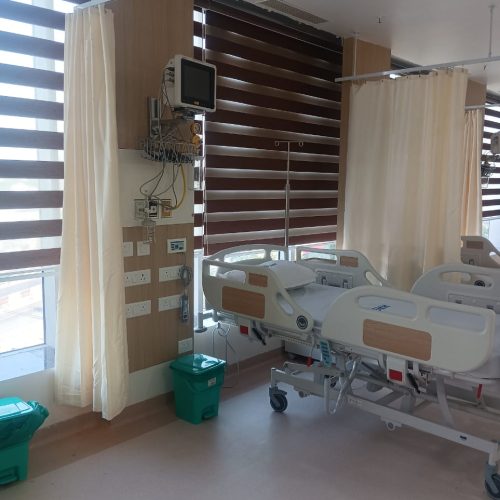

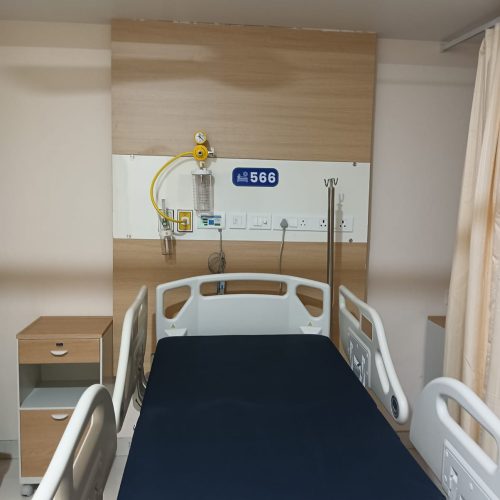

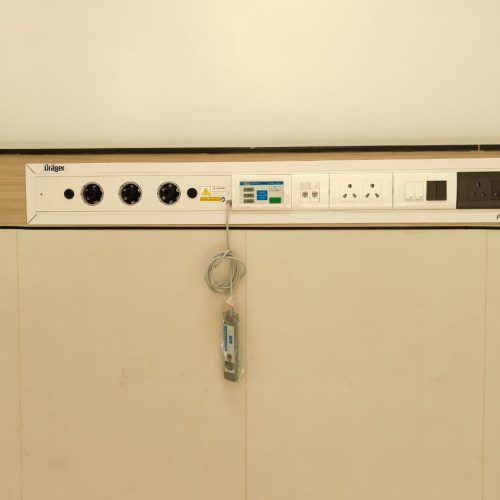

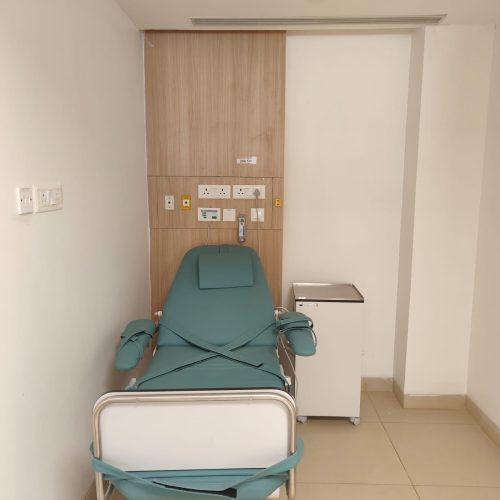

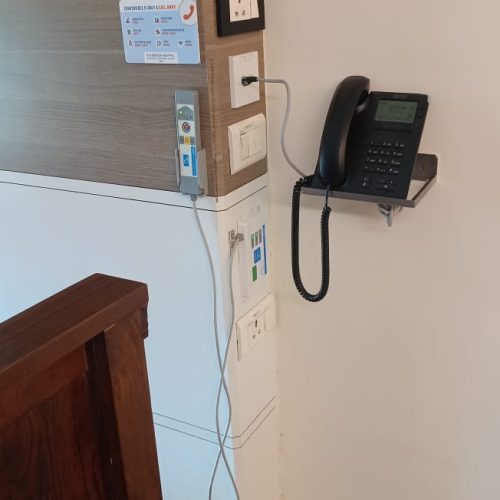

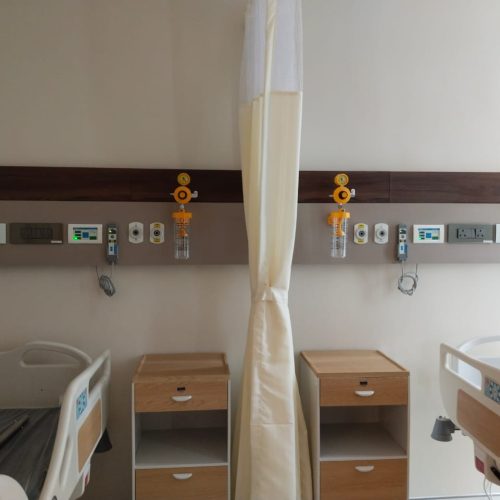

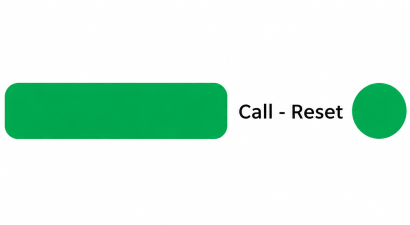

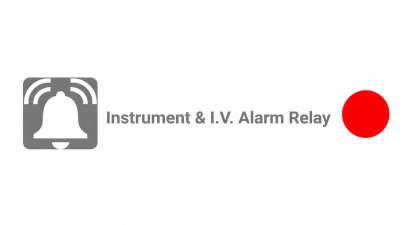

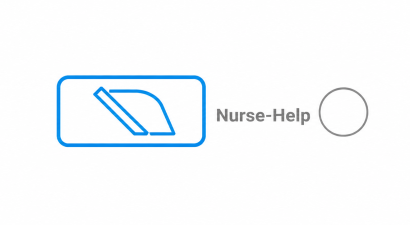

Bed units are mounted behind the patient’s bed. They can also have additional features like Nurse-Help Request, Instrument Alarm Relay, Code-Blue Alert and Patient-Nurse Intercom(Speech Facility).
- Lamp indicators for call status
- Nurse help requests.
- Instruments alarm relays
- Code-blue alerts
- Patient-Nurse Intercom (Speech facility)
- Concealed or Surface mountable
Outer Dimensions: 90mm W X 150 mm L X 60 mm H
Cutout Dimensions : 80mm W X 110 mm L X 52 mm H (CTC- 120 mm) [4M]
Patients Handsets
Patient handsets are available with features which include call buttons for normal nurse-call, calls for attendant and buttons for switching lights. They can also serve as telephone handsets for patient-nurse intercom.
Advantages:
- Rugged handsets with lamp indicators for calls.
- Provision for attendant and cafeteria calls.
- Patient-Nurse Intercom (Speech facility)
- Lighting, Audio and TV controls, optional
Dimensions: 175 mmL X 40mm W X 20 mm H

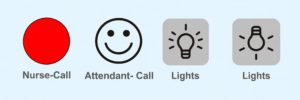

Attendant- Call
Lights
HANDSET CRADLE :
Handset cradles can mount handsets on the wall, rail or bed.
Advantages:
- Designed from sturdy ABS plastic.
- Enables wall mounting and safe storage of all standard and multifunction handsets.
- Prevents handsets getting pulled out or disconnected from bed.
Dimensions: 90 mm L X 46 mm W X 24 mm H

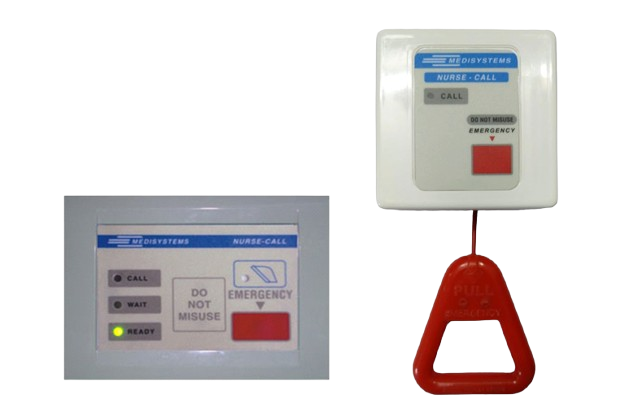

EMERGENCY ALERT UNITS :
Emergency alert units are installed within the toilet next to the water closet.
Advantages:
- Moisture protected, suitably installable within toilets
- Safe, rugged, pull-cord units also for shower & bath areas
- Indicator lamps for patient's re-assurance.
- Concealed or Surface mountable
Outer Dimensions: 90mmL X 150 mm W X 60 mm H [3M]
Cutout Dimensions: 79 mm L X 99mm W X 42 mm H (CTC – 82 mm) [3M]
Outer Dimensions: 90mm L X 90mm W X 40 mm H [2M]
Cutout Dimensions: 78 mm L X 76 mm W X 44 mm H (CTC – 61 mm) [2M]
SHOWER PULL CORD :

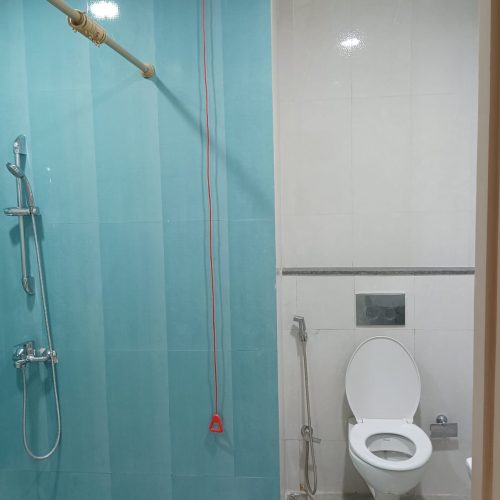

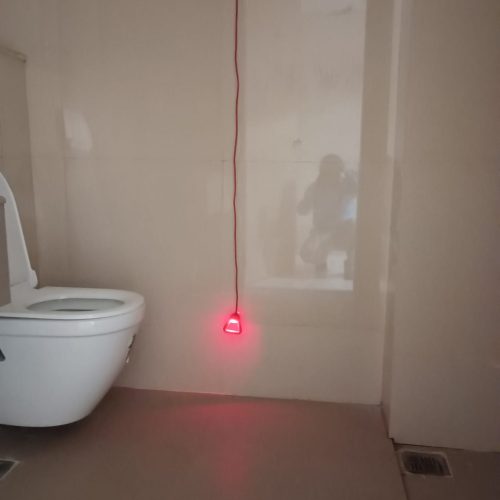

Emergency alert unit installed anywhere within the toilet or in shower area with a sturdy pull cord.
Advantages:
- Emergency Pull cord switch provided for shower areas
- Can be located anywhere within the toilet area for convenient operation
- Indicator lamps for patient's re-assurance.
- Can support upto 100 kg weight if needed
- Prevents Fall Risk
- Surface mountable on wall
Dimensions: 150 mm L X 90 mm W X 40 mm H

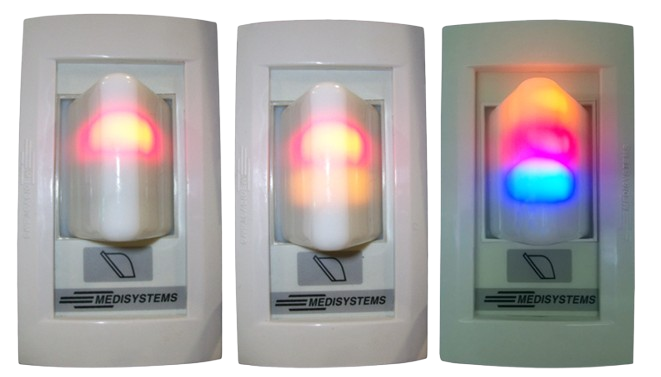

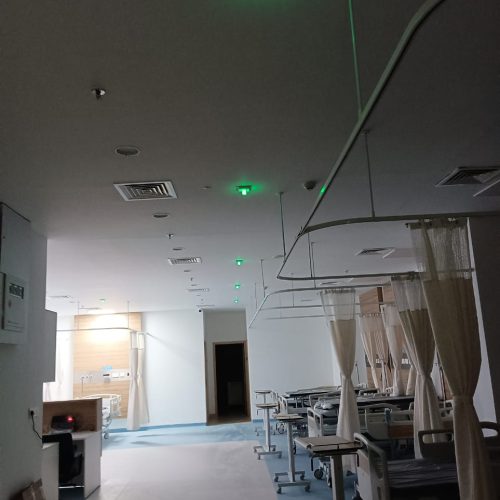

DOOR DISPLAYS :

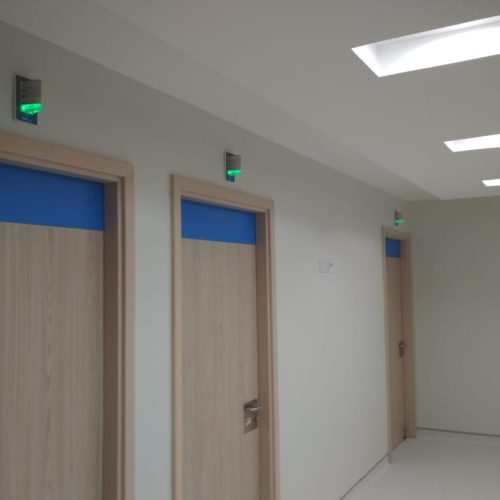

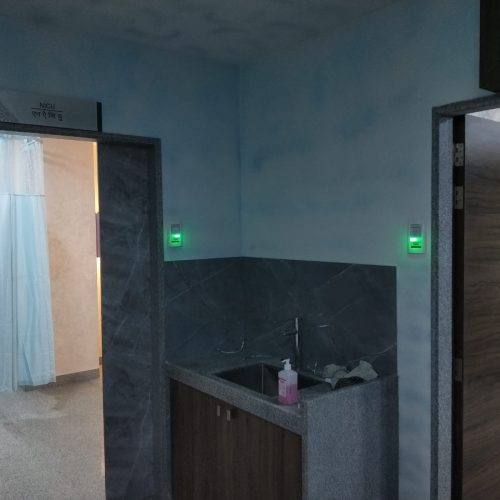

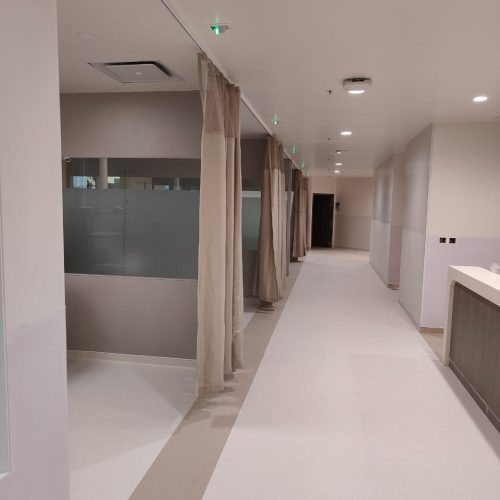

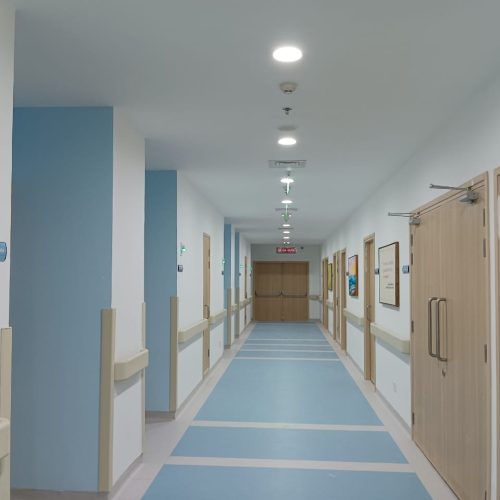

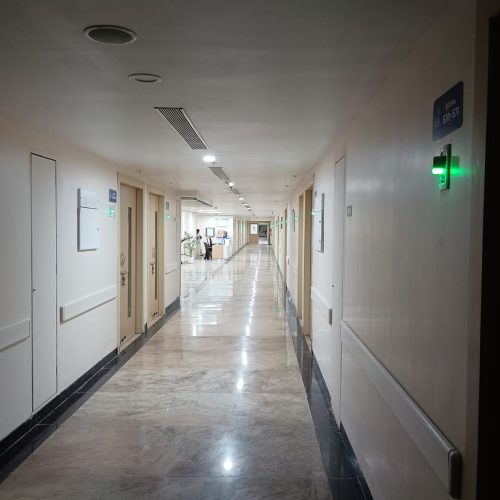

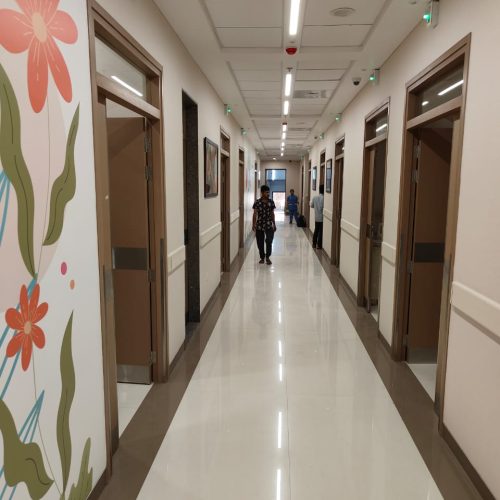

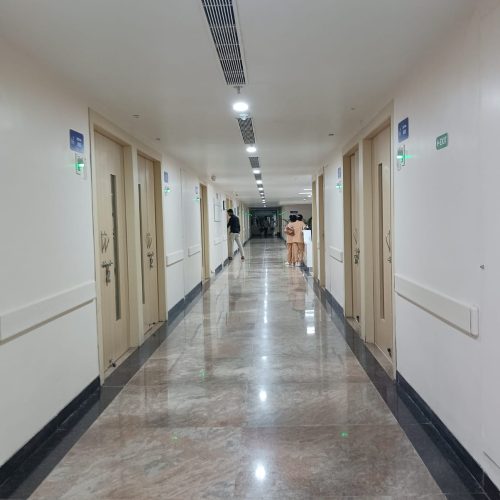

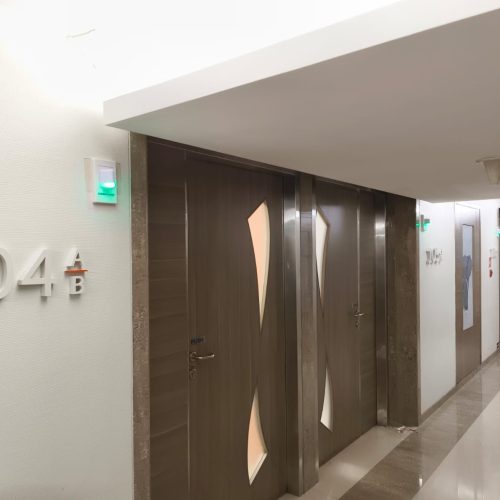

A Door Display is mounted at the Room entrance near the door frame. It has indicator lights which are visible throughout the corridor. Call status can be easily recognised even from a distance. Displays can also be ceiling mounted to indicate in cubicles.
Advantages:
- Bright, elegant, three-colour door displays.
- Call attendance registration at room entrance.
- Nurse presence indication
- Concealed or Surface mountable.
Outer Dimensions: 90mm L X 150 mm W X 60 mm H [4M]
Cutout Dimensions : 80mm W X 110 mm L X 52 mm H (CTC- 120 mm) [4M]

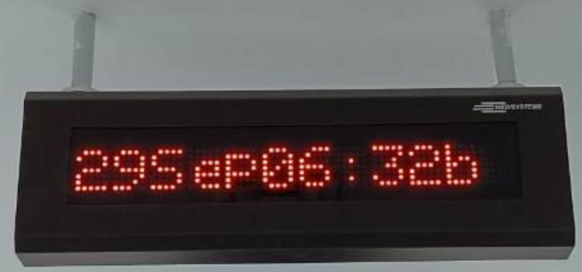

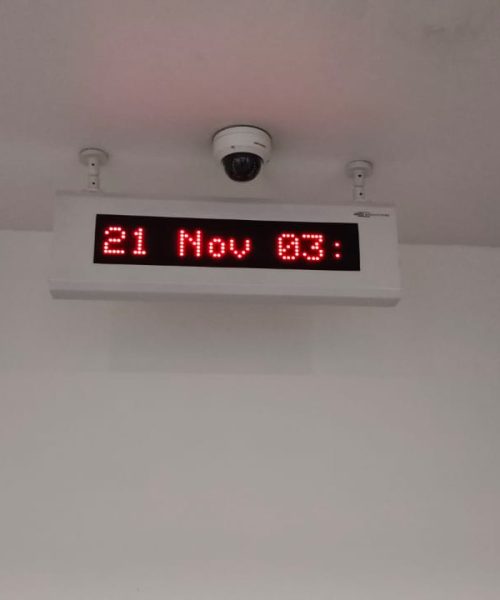

CORRIDOR DISPLAY UNIT :

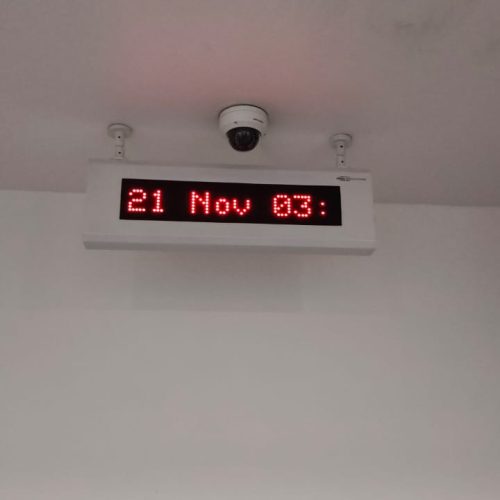

For an additional scrolled display of calling room numbers for hospital corridors. especially for corridors which are very long and have one or more bends.
Advantages:
- Bright, high visibility, scrolling displays
- Provides clear visibility to patient calls to help speed response times
- Promotes a quieter, more soothing environment over loud tones
- Allows staff to quickly distinguish between call priorities
- Reduces steps for nurses and caregivers by providing information visible throughout the corridor.
- Prioritises events to allow nurses and caregivers to manage responses.
Dimensions : 650 mm L X 210 mm W X 58 mm D (Single sided)
Dimensions : 650 mm L X 210 mm W X 105 mm D (Double sided)

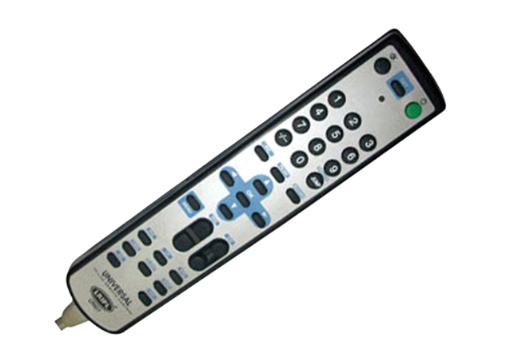

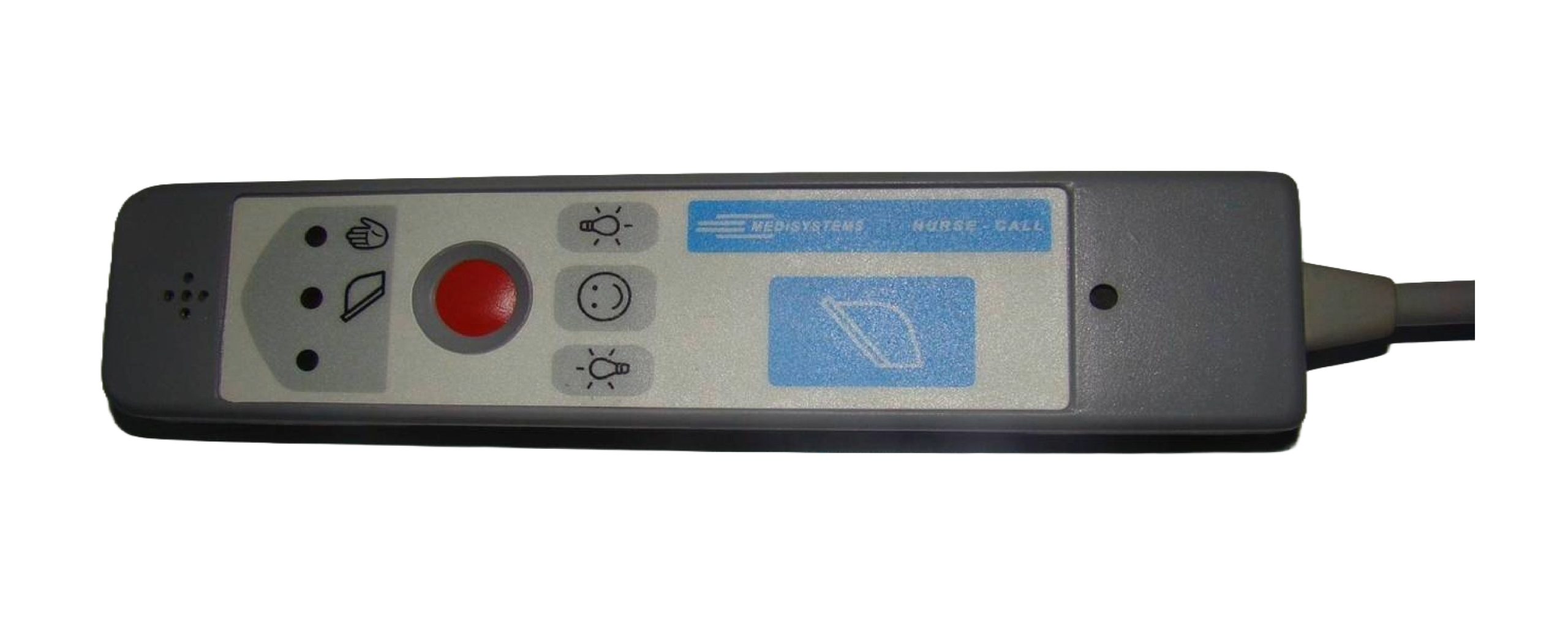

MULTIFUNCTION HANDSETS :

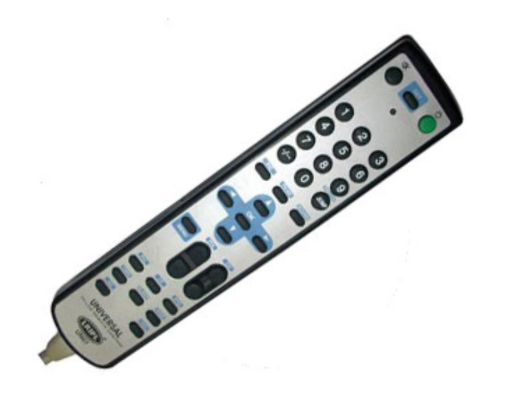

In addition to nurse-call functions, these enable the patient to also conveniently switch lamps, fans, audio and TV from the same handset.
Advantages
- Changes TV channels and sound volume for any make of TV.
Dimensions : 210 mm L X 45 mm W X 26 mm H

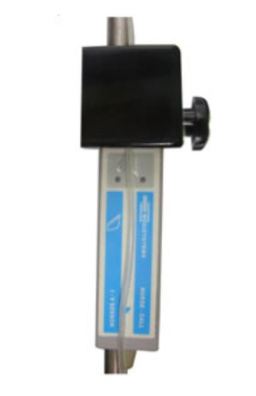

I-V SENSORS :

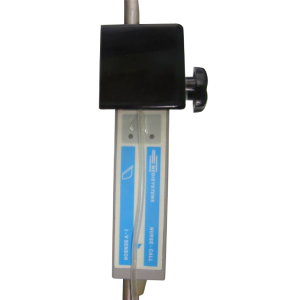

I.V. Drip alerts the attendant nurse if I.V. dispensation is to be refilled when the I.V. fluid is over by means of a chime.
Advantages:
- I-V Sensors can monitor the residual level of lnfusion fluids and deliver an alarm as the bag / bottle is depleted
- The drip alarm is delivered as an emergency call so that the nurse can take prompt action whenever the drip nears depletion
- IV Sensors and Alarm can give the status of infusion fluids
- The drip alarm is delivered as an emergency call so that the nurse can take prompt action whenever the drip discontinues.
- Accomodates all standard I-V sets
Dimensions : Unit 175 mm L X 55 mm W X 20 mm H
Products Range
CORRIDOR DISPLAY UNIT
For an additional scrolled display of calling room numbers for hospital corridors. especially for corridors which are very long and have one or more bends. Indicates all the types of call or call status as emergency, code-blue, presence.
MULTIFUNCTION HANDSETS
In addition to nurse-call functions, these enable the patient to also conveniently switch lamps, fans, audio and TV from the same handset. Changes TV channels and sound volume for any make of TV. Dimensions : 210 mm L x 45 mm W x 26 mm H.
I-V SENSORS
I-V Sensors can monitor the residual level of lnfusion fluids and deliver an alarm as the bag / bottle is depleted. The drip alarm is delivered as an emergency call so that the nurse can take prompt action whenever the drip nears depletion. Accomodates all standard I-V sets Dimensions : Unit 175 mm L x 55 mm W x 20 mm H.
I.V. Drip Alert
Alarm
Check
