    Hospital Curtains:

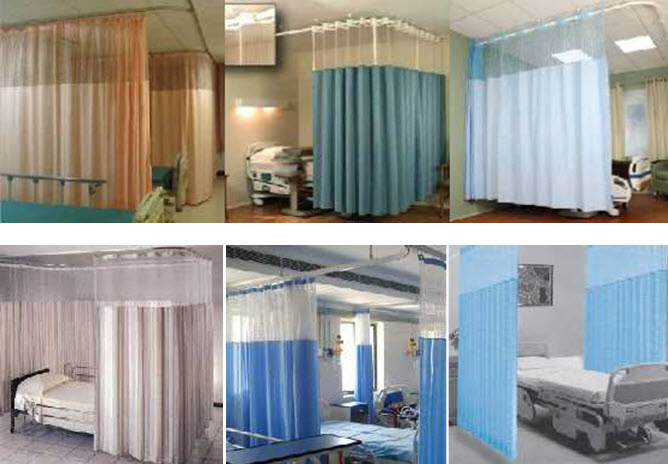

    Medisystems offers the best selection of high quality privacy, cubicle and hospital curtains for all of your applications that require privacy and seclusion. Privacy curtains are commonly used in the medical and commercial industries where they serve as hospital privacy curtains, doctor's office privacy curtains, and dressing room curtains and even to give privacy to cubicles in offices. The curtain fabrics we offer combine safety, style, ease of care and affordability. The construction of these privacy curtains ensures the look that is desired coupled with long curtain life, resulting in value for the customer. While these curtains are commonly used in hospitals, clinics and other medical facilities, they offer function and fashion for a wide array of applications. They can be made with or without the mesh at the top, depending on your specific needs and fire code requirements. We also offer curtain tracks for privacy and hospital curtains.

    Flame Retardant Curtains:

    All cubicle curtains are fabricated using fabrics that pass NFPA 701 testing, the most stringent national standard. Please consider all local codes however, to ensure you meet all requirements (e.g. some areas require the use of drops in lieu of mesh to ensure appropriate coverage of sprinkler systems.

    Curtain Construction:

    All cubicle curtains are constructed with a triple thick 1&half incher header sewn with a double needle Safe-T-Lock stitch, making the curtains practically tear proof. This stitching technique eliminates unraveling and raw edges, providing enduring strength. Fabric patterns are always matched to provide excellent appearance, and each curtain undergoes a 7 point inspection process prior to approval for shipment. Curtains are typically sewn with rust proof nickel plated brass grommets on 6 inch centers across the header, although customer specifications can be accommodated. Curtains are constructed in any height and come in incremental widths of 18 inches. Mesh

    Most fire codes require the use of mesh across at least the top 20 inches of a privacy curtain. Our curtains feature half inch flame retardant mesh which meets NFPA requirements. Mesh available in 11 colors, although white or ivory are the most common choices to complement fabric selection. Curtains can be made solid, without mesh as well.


    Height: Curtains available in any height, so identify the preferred spacing between the bottom of the curtain and the floor. Hardware drops the curtain by approximately3inches.
    Width: Curtains available in 18 inch increments. Add at least 10% (15% for tracks under 9 feet) to length of track to account for fullness. Be sure to include ceiling height and track length and layout when requesting a quote.


    A wide range of flame retardant fabrics are available for use in fabricating privacy cubicle curtains. We offer several of the most popular options below for your consideration. If you require a specific fabric, please contact us so that we may verify the fabric availability and lead time. All fabrics are "true- light" tested to ensure that the opacity of the fabric provides absolute privacy. Selection of fabrics shown typically ensures shorter lead times of one to three weeks from order placement to shipment.

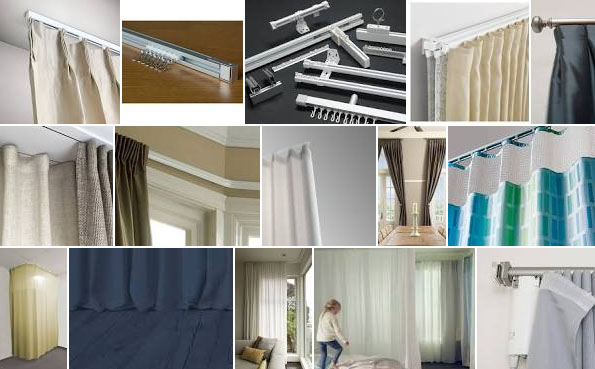

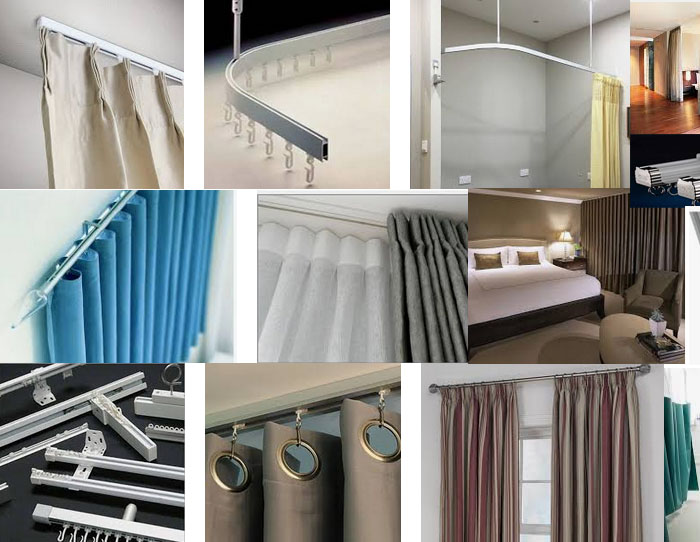

    Specifications: Tracks:

    Made Aluminium Alloy in H25mm x W 20mm with approx 60 mic. thick powder coating of ivory colour. Free from joints up to 20ft.length. Bending can be made as per the radius required up to 300mm and 90 degrees


    The roof supporting system for tracks consists of Aluminium of 12mm dia pipe. Supported to the wall with the help of Cold Rolled Cold Annealed (CRCA) steel fabricated OR NYLON MATERIAL wall bracket. Fixing is done with the necessary fasteners. Supplied with curtain removal point for the track for easy loading and unloading of the curtains from the track.


    Curtains are high quality, synthetic material having cotton net stitched at the top for proper ventilation. Curtains have nylon / Metal Eyele ts for hooking the runners. Curtains Can be ANTI MICROBIAL, STAIN RETARDANT & easily washable. Curtains can be supplied in different colors.


    Roller type runners made of hard composite material like Teflon / Nylon for smooth, noise free & trouble free curtain sliding./p>

    I.V Tree system 5 Point Hanger with 6 feet track and all accessories.

    I.V Tree system 5 Point Hanger with 6 feet track and all accessories.

    Providing, Fabricating & Fixing of I.V.Tree System should comprise if the following components and specifications;

    • Heavy duty Aluminium track (50mm H x 38mm W) with Ivory colour powder coated finish.
    • Heavy duty shelf locking facility wheel trolley.
    • Telescopic carrier hanger with length variation option.
    • Five point hanger systems made of SS with 6mm thickness. Four hanger points with folding provisions.
    • Fifth hanger point is fixed right below the carrier for usage convenience.
    • Roof suspension is made of Aluminium pipe of 1.5mm gauge 18mm (adjustable mechanism) with ivory powder coated finish.

    Edge over Competitors:

    • Premium Quality Track system with our own processing / production unit to any qty requirement.
    • Tracks are stronger and better in design compared to competitors. More thicker in construction to have reliable life.
    • Econoimical and Flexible in executing the orders.
